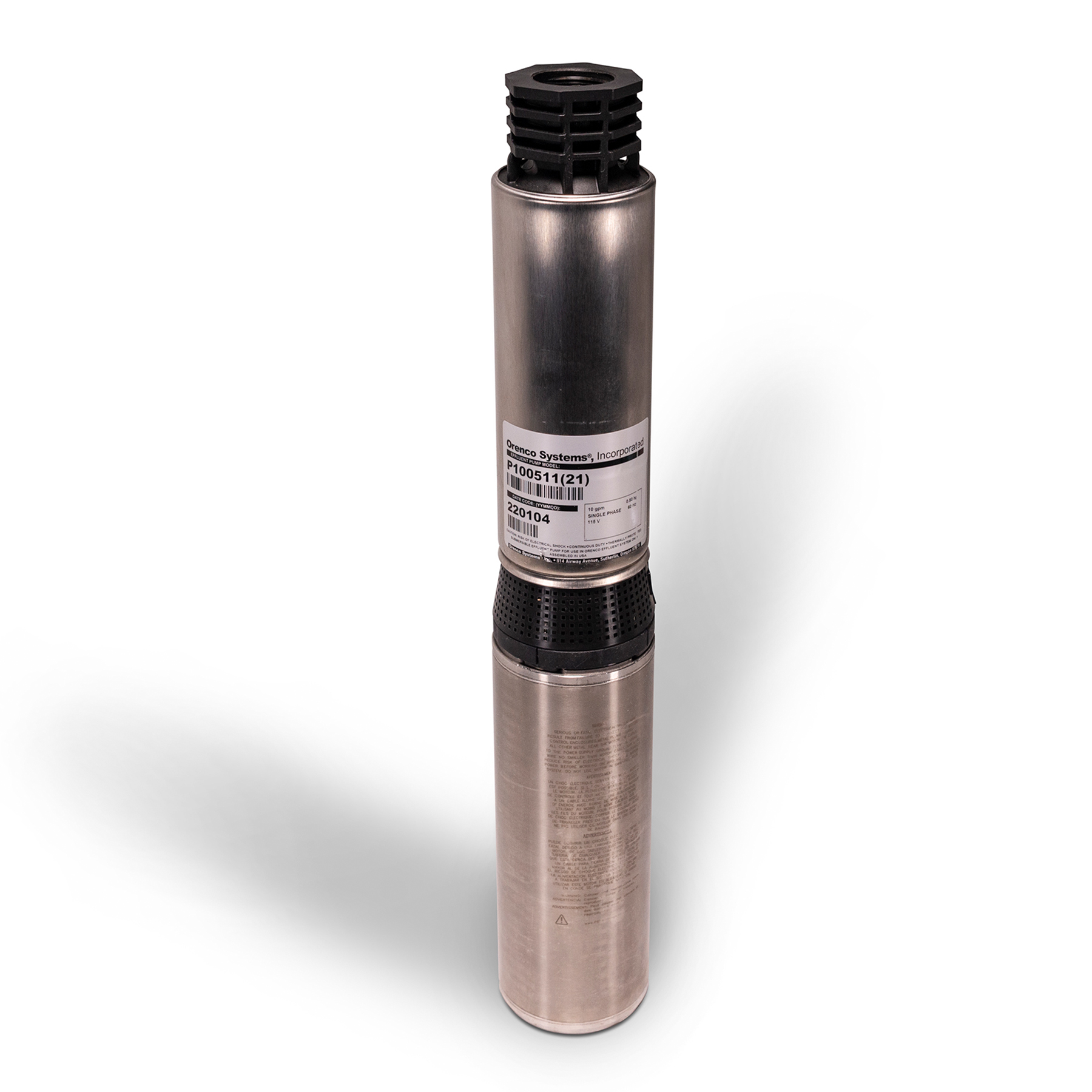

P-Series 4in (100mm) Submersible Effluent Pumps
P-Series 4in (100mm) Submersible Effluent Pumps are used to transport screened effluent with low counts of Total Suspended Solids (TSS). They're designed to be used in a variety of Orenco pumping packages, typically in a Biotube® ProPak™ pumping package. P-Series Pumps are constructed of lightweight, corrosion-resistant stainless steel and engineered plastics.
- Lightweight
- Constructed of corrosion-resistant stainless steel and engineered plastic
- Run-dry capability (liquid end)
- 1/8in (3mm) bypass orifice (patent pending) to ensure flow recirculation for motor cooling and to prevent air bind
- Pentek XE series motor
- Built-in thermal overload protection
- Available in 10, 20, and 30gpm (0.6, 1.3, and 1.9L/sec) models
- Available in 1/2HP (.37kW), 115v
- 16 AWG, 3-conductor Type SOOW 600V motor cable (suitable for Class I, Division 1 and Division 2 applications)
- 36-month warranty from date of manufacture on liquid end against defects in materials or workmanship
