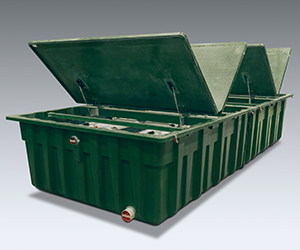

AdvanTex® AX100 Treatment Systems
Orenco’s AdvanTex AX100 Treatment Systems are a dependable, proven technology for treatment of domestic-strength, primary-treated effluent to better-than-secondary standards, including nitrogen-reduction. AX100 treatment units consist of sturdy, watertight basins filled with a lightweight, highly absorbent, engineered textile media that treats a tremendous amount of wastewater in a small space.
Applications
AX100 Treatment Systems are intended for large residential applications or commercial and municipal applications that require advanced secondary treatment. They’re also an excellent choice for decentralized settings, including new installations, retrofits, or repairs. AX100s are ideal for subdivisions, “fringe” development, hotels, resorts, schools, churches, businesses, manufactured home parks, RV parks, campgrounds, rest areas, and truck stops.
Flows
A single AdvanTex AX100 pod can treat peak flows of up to 5000 gpd (18,927 L/day). AdvanTex Treatment Systems are modular, however, and can be installed in multi-pod arrays to handle higher flows.

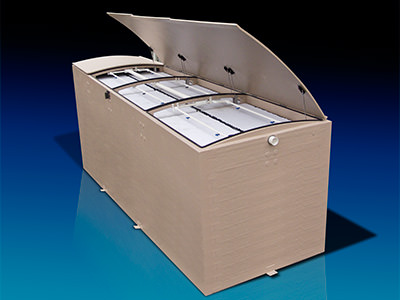

AdvanTex® AX-Max™ Treatment Systems
Orenco’s AdvanTex AX-Max Treatment Systems are a dependable, proven technology for treating domestic-strength, primary-treated effluent to better-than-secondary standards, including nitrogen-reduction. They consist of sturdy, watertight fiberglass tanks that incorporate recirculation-blend and discharge tankage in a single module. Each complete, pre-manufactured unit also includes pumping systems, ventilation, and a lightweight, highly absorbent, engineered textile media that treats a tremendous amount of wastewater in a small space.
Applications
AX-Max Treatment Systems are intended for large residential applications or for commercial and municipal applications that require advanced secondary treatment. They eliminate the need for separate recirculation and discharge tanks by performing both functions within a single module. AX-Max units are ideal for subdivisions, “fringe” development, hotels, resorts, schools, churches, businesses, manufactured home parks, RV parks, campgrounds, rest areas, and truck stops.
Flows
Depending on model, a single AdvanTex AX-Max unit can treat peak flows of 5,000-15,000 gpd (18.9-56.8 m3/day). AdvanTex Treatment Systems are modular, however, and can be installed in multi-unit arrays to handle higher flows.
AdvanTex AX-Mobile portable wastewater system

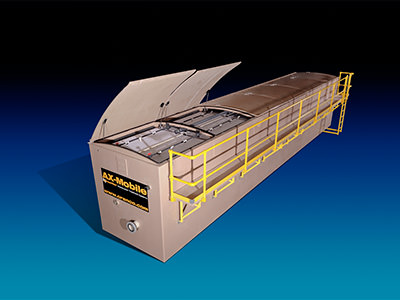

AdvanTex® AX-Mobile™ Treatment Systems
Orenco’s AdvanTex AX-Mobile Treatment Systems are a portable, proven technology for treating domestic-strength, primary-treated effluent to better-than-secondary standards, including nitrogen-reduction. They consist of a sturdy, fully-plumbed and prewired, watertight fiberglass tank incorporating recirculation-blend and discharge tankage into a single module. Units include pumping systems, ventilation, and a lightweight, highly absorbent, engineered textile media that treats a tremendous amount of wastewater in a small space.
Applications
AX-Mobile Treatment Systems are intended for remote or temporary wastewater treatment applications requiring advanced secondary treatment, including work camps, forward operating bases, disaster relief, and temporary flow diversions. They eliminate the need for separate recirculation and discharge tanks by performing both functions within a single unit. Multiple units can be arranged to accommodate larger flows, and units incorporating primary treatment tankage are available.
Flows
Depending on the model chosen, a single AdvanTex AX-Mobile unit can treat peak flows of 5,000-15,000 gpd (18.9-56.8 m3/ day).
AdvanTex® Greywater Treatment System

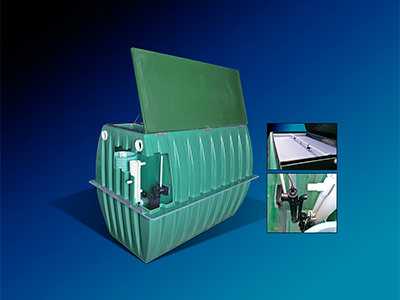

Orenco offers a variety of AdvanTex Greywater Treatment Systems suitable for a wide range of flows. For example, the AdvanTex AX10-RTUV is designed for commercial and residential small-flow applications. Each AX10-RTUV is a single, complete, self-contained module that treats greywater to reuse standards before pump or gravity discharge. Units feature the same dependable, efficient AdvanTex textile media used in our wastewater treatment systems.
After AdvanTex treatment, greywater flows by gravity through the contact chamber and around a UV lamp, where it is disinfected. The UV unit uses no chemicals and has no moving parts. In side-by-side NSF® testing, the Orenco UV unit meets or exceeds the performance of other residential UV disinfection systems.
AdvanTex Greywater Treatment Systems are also quiet, low-odor, and low-profile ... so they can blend right into the landscaping. Larger greywater systems are available on a custom-order basis.
